Noxair Modular Nitrogen Generator is composed of multiple high-strength aluminum alloy cavities. Each group of chambers is divided into two chambers, and each chamber is filled with adsorbent to separate nitrogen and oxygen in the compressed air. When a chamber is working (adsorption), the opposite side is regenerated using a pressure swing adsorption method. During operation, compressed air diffuses upwards evenly from the bottom of the adsorption chamber, oxygen in the air is adsorbed by the adsorbent, thus nitrogen and oxygen are separated to obtain nitrogen. During regeneration, part of the high-purity nitrogen expands from working pressure to atmospheric pressure, passes through the adsorbent that is saturated with oxygen, and takes away the oxygen it adsorbed, the adsorbent can be regenerated.

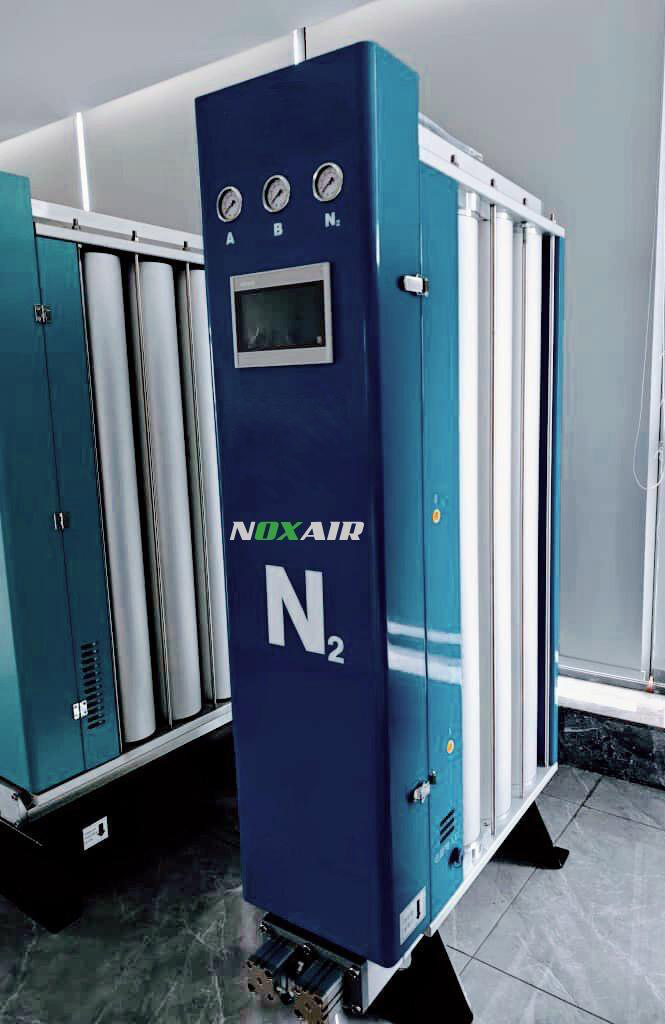

Modular Nitrogen Generator
Leading the way in Modular Nitrogen Generator Plant manufacturing in India
Product Range
| Nitrogen flow | 0.5~160Nm³/h |
| Inlet temp | 1-38℃ |
| Inlet pressure | 0.6-0.8MPa |
| Nitrogen purity | 95~99.999% |
| Noise | ≤80dB |
| PDP | -40℃ ~ -70℃ |
| Power supply | AC220V/ AC110V DC24V 50/60Hz |
| Nitrogen outlet pressure | 0.1~0.65MPa（Adjustable with built-in nitrogen tank) |
| Maximum ambient temp | ≤45℃ |
| Control method | PLC programmable control HMI microcomputer controller |

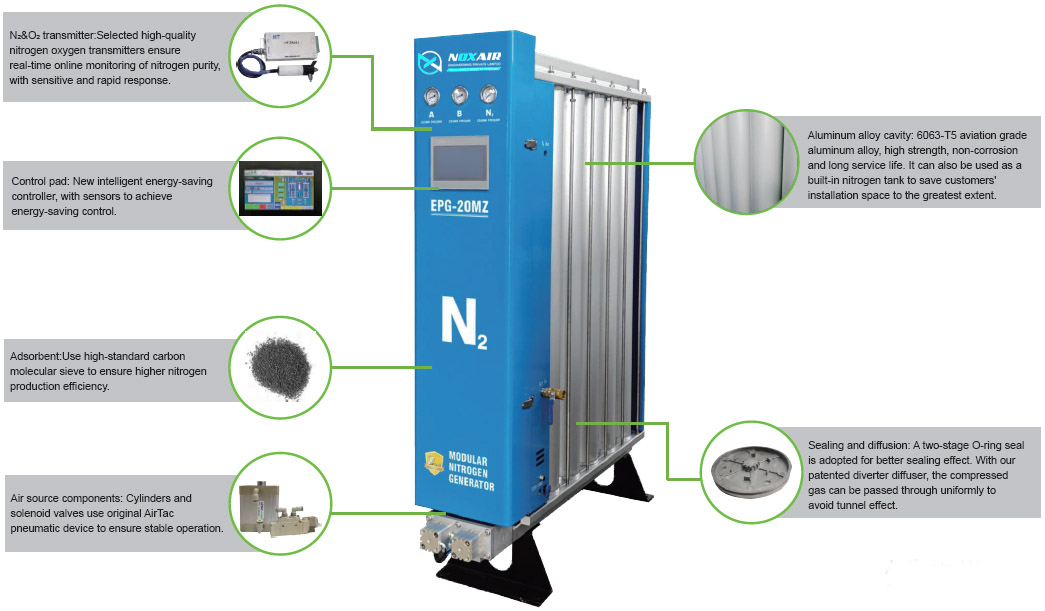

Features of Modular Nitrogen Generator
- High efficiency, low air nitrogen ratio, and then achieve energy saving and emission reduction, improve economic efficiency. The modular nitrogen generator uses a high-performance molecular sieve with a air-to-nitrogen ratio of 4.2: 1 when purity of 99.99%, and the traditional twin-tower nitrogen generator has a air-to-nitrogen ratio of 5: 1 when purity of 99.99%. For example, a 40Nm³ / h modular nitrogen generator requires compressed air of 2.8Nm³ / min, while a 40Nm³ / h twin tower nitrogen generator requires compressed air of 3.3Nm³ / min, saving 15% of energy consumption.
- Adopt PLC programmable control program, equipped with high-resolution human-computer interaction, detect various data (air pressure, nitrogen pressure, nitrogen purity, nitrogen flow), record the operation status, etc. It realizes the functions of automatic evacuation of unqualified nitrogen and energy-saving automatic pause machine to save energy consumption.
- A unique control method combining solenoid valve and pneumatic valve is adopted to avoid the traditional cumbersome multi-valve control structure, and the operation is stable and reliable.
- Adopt high-strength aluminum alloy structure, non-corrosive and rust-proof, avoid equipment failure caused by corrosion and shedding of the inner pipeline, ensure normal operation of production, and greatly extend the service life of the whole machine. Some models can be built in with a nitrogen tank, which saves customers the most effective installation space.
- The equipment supports 24 hours of continuous supply of nitrogen of the required quality to avoid the production stoppage due to the transition time caused by the out of gas from cylinders. There is no need to consider the cost of removing old equipment and replacing larger equipment when expanding production capacity. It only needs to add corresponding modules to meet the expansion requirements, which is convenient and fast, saves costs.
Advantages of modular nitrogen generator
- The average split flow technology makes full use of each adsorbent;
- Small size, suitable for various occasions;
- No need for pressure vessel inspection, saving cost and time for users;
- The adsorption tower cavity is made of aluminium alloy, which is especially suitable for the food and pharmaceutical industry;
- The adsorption tower adopts straight pipe design, snowstorm filling technology,
and spring compression device to avoid the tunneling effect of the adsorbent.
